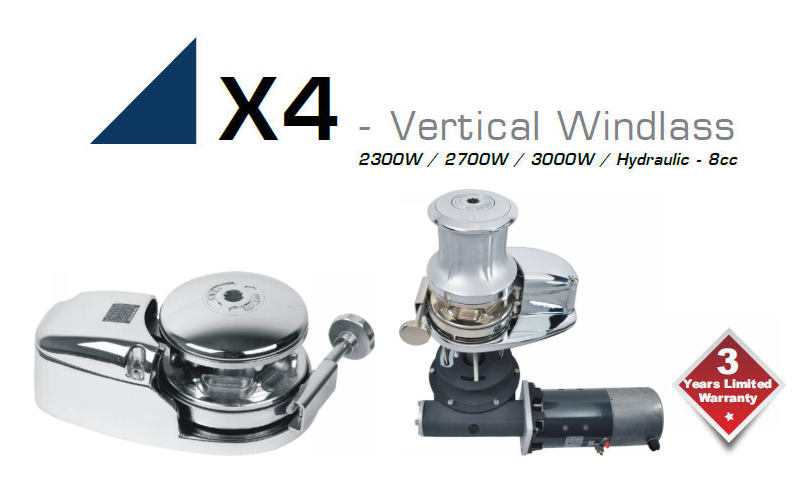

Lofrans X4 Vertical Windlass

Lofrans X4

Main Features

Luxury chrome bronze or aluminium base and drum.

Luxury stainless steel base and drum (Plus version).

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual override.

Manual chain release.

Chain counter pre-setting as standard.

Heavy duty rated IP44 electric motor.

Anodised marine aluminium gearbox.

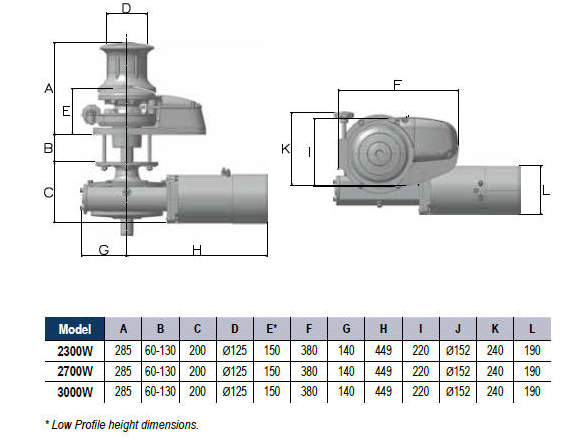

Lofrans X4 specifications

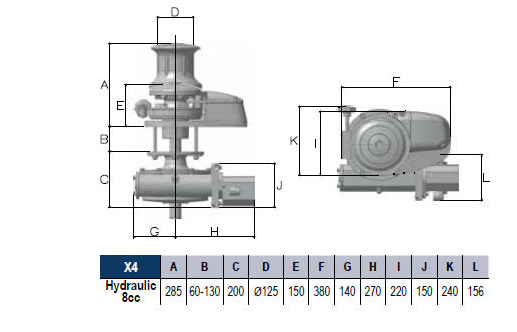

Hydraulic dimensions

Lofrans X4 Hydraulic

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Chromed Bronze Chromed Bronze Chromed Bronze
Motor Size 2300W 2700W Hydraulic - 8cc
Volts 24 24
Maximum Instant Lift (kg) 2100 2500 2500
Lifiting Working Load (kg) 500 530 650
Amps under load (A) 160 170
Line speed (m/min) 13 13 16
Max line speed (m/min) 25 28 16
Hydraulic Pressure (bar) 200
Hydraulic Volume (lt/min) 32
Net Weight Low Profile (kg) 72 75 55
NetWeight With Drum (kg) 82 85 60
Relay box yes yes

With Drum

CW: the windlass pulls clockwise.

CCW: the windlass pulls counter clockwise.


Construction Chromed Bronze Chromed Bronze Chromed Bronze
Motor 24v 2300w 24v 2700W Hydraulic - 8cc
Chain Size
6,385.76 €
Sale Price
5,747.18 €
6,385.76 €
Sale Price
5,747.18 €
5,584.32 €
Sale Price
5,025.89 €
10mm ISO 4565
CW or CCW
06722222 06822222 06022223
10mm DIN 766
CW or CCW
06722232 06822232 06022233
12mm ISO
CW or CCW
06722242 06822242 06022243
14mm
CW or CCW
06722252 06822252 06022253
3/8 DIN
CW or CCW
06722032 06822032 06822033
3/8 HT
CW or CCW
06722042 06822042 06822043
1/2 DIN
CW or CCW
06722052 06822052 06822053
1/2 BBB
CW or CCW
06722062 06822062 06822063
1/2 HT
CW or CCW
06722072 06822072 06822073

Low Profile

CW: the windlass pulls clockwise.

CCW: the windlass pulls counter clockwise.


Construction Chromed Bronze Chromed Bronze
Motor 24v 2300w 24v 2700W
Chain Size
6,101.37 €
Sale Price
5,491.23 €
6,101.37 €
Sale Price
5,491.23 €
10mm ISO 4565
CW or CCW
06721222 06821222
10mm DIN 766
CW or CCW
06721232 06821232
12mm ISO
CW or CCW
06721242 06821242
14mm CW or CCW 06721252 06821252
3/8 DIN
CW or CCW
06721032 06821032
3/8 HT CW or CCW 06721042 06821042
1/2 DIN
CW or CCW
06721052 06821052
1/2 BBB
CW or CCW
06721062 06821062
1/2 HT
CW or CCW
06721072 06821072

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
