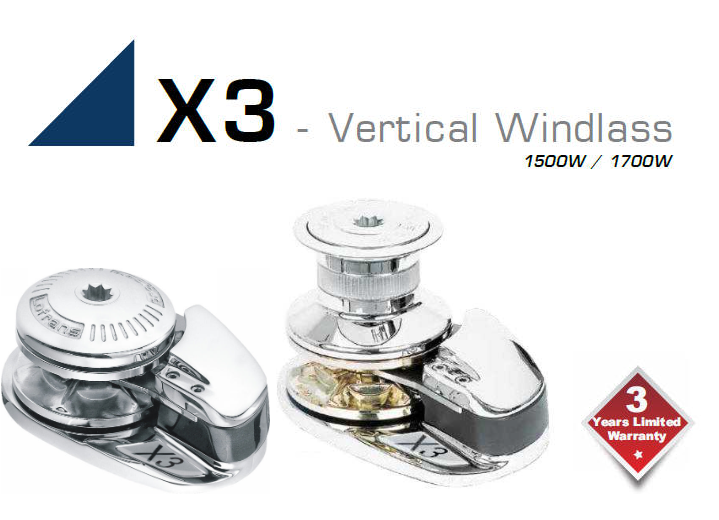

Lofrans X3 Vertical Windlass

Main Features

Luxury chrome bronze or aluminium base and drum.

Luxury stainless steel base and drum (Plus version).

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual chain release.

Rope chain management by the spring load arm.

Chain counter pre-setting as standard.

Heavy duty rated IP67 electric motor.

Anodised marine aluminium gearbox.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	Aluminium	Chromed Bronze	Chromed Bronze	Chromed Bronze
Motor Size	1700W	1500w	1700W	1700W
Volts	12	12	12	24
Max instant pull (kg)	1600	1200	1600	1695
Working pull (kg)	270	190	270	270
Amps under load (A)	180	150	180	90
Line speed (m/min)	14	17	14	15
Max line speed (m/min)	32	40	32	32
Weight Low Profile (kg)	32	32	35	35
Weight With Drum (kg)	35	35	38	38

With Drum

Construction

Aluminium

Chromed
Bronze

Motor

12v 1700W

12v 1500w

12v 1700W

24v 1700W

Chain and Rope Size

2,430.24 €
Sale Price
2,187.22 €

2,921.45 €
Sale Price
2,629.31 €

	8mm
	14mm

	10mm ISO
	16mm

	10mm DIN
	16mm

	12mm ISO
	18mm

	5/16"
	1/2"

	3/8" DIN
	5/8"

	3/8" HT
	5/8"

	1/2"
	3/4"

Low Profile

Construction

Aluminium

Chromed
Bronze

Motor

12v 1700W

12v 1500w

12v 1700W

24v 1700W

Chain and Rope Size

2,378.50 €
Sale Price
2,140.65 €

2,184.62 €
Sale Price
1,966.16 €

2,662.89 €
Sale Price
2,396.60 €

	8mm
	14mm

	10mm ISO
	16mm

	10mm DIN
	16mm

	12mm ISO
	18mm

	5/16"
	1/2"

	3/8" DIN
	5/8"

	3/8" HT
	5/8"

	1/2" DIN
	3/4"

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
