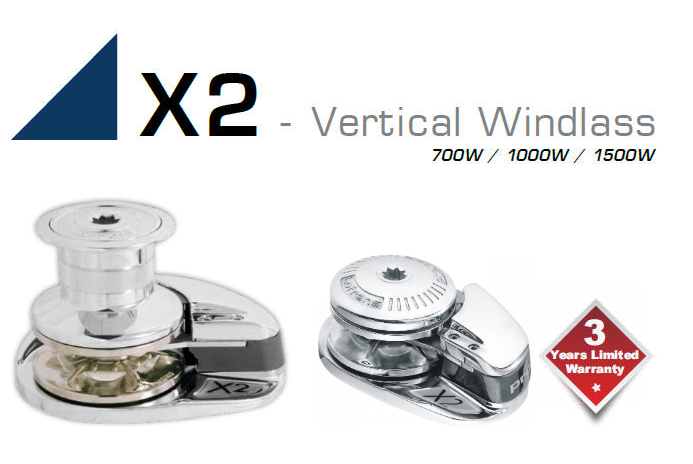

Lofrans X2 Vertical Windlass

Lofrans X2

Main Features

Luxury chrome bronze or aluminium base and drum.

Luxury stainless steel base and drum (Plus version).

Special watertight stainless steel ball bearing in the base.

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual chain release.

Manual override.

Rope chain management by the spring load arm.

Chain counter pre-setting as standard.

Heavy duty rated IP67 electric motor (X2).

Anodised marine aluminium gearbox.


Lofrans X2 Specifictions

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Aluminium

Construction Aluminium Aluminium Aluminium Aluminium
Motor Size 800W 1000W 1500w 1500W
Power Supply (V) 12 12 12 24
Max Lift Load 750 1000 1200 1250
Lift Working Load (kg) 80 165 190 190
Amps Work Load 90 135 150 75
Line Speed (m/min) 26 20 17 19
Max Line speed (m/min) 35 40 40 40
Net Weight Low Profile (kg) 18 19 24 24
Net Weight with Drum (kg) 19 20 25 25

With Drum

Construction Aluminium Aluminium Aluminium Aluminium
Motor Size 12v 800W 12v 1000W 12v 1500w 24v 1500W
Chain Size
1,357.29 €
Sale Price
1,221.56 €
1,473.63 €
Sale Price
1,326.27 €
1,732.15 €
Sale Price
1,558.94 €
1,732.15 €
Sale Price
1,558.94 €
6mm ISO 4565 DIN 766 02312201 02412201
8mm ISO 4565 DIN 766 02312211 02412211 02512211 02512212
10mm ISO 4565 02412221 02512221 02512222
10mm DIN 766 02412231 02512231 02512232

Low Profile

Construction Aluminium Aluminium Aluminium Aluminium
Motor Size 12v 800W 12v 1000W 12v 1500w 24v 1500W
Low Profile
Chain Size
1,357.29 €
Sale Price
1,221.56 €
1,383.16 €
Sale Price
1,244.84 €
1,641.72 €
Sale Price
1,477.55 €
1,641.72 €
Sale Price
1,477.55 €
6mm ISO 4565 DIN 766 02311201 02411201
8mm ISO 4565 DIN 766 02311211 02411211 02511211 02511212
10mm ISO 4565 02411221 02511221 02511222
10mm DIN 766 02411231 02511231 02511232
3/16 BBB 02411001
5/16 HT 02411021 02511021 02511022
3/8 DIN 02411031 02511031 02511032
3/8 HT 02411041 02511041 02511042

Chromed Bronze

Construction Chrome Bronze Chrome Bronze Chrome Bronze Chrome Bronze
Motor Size 800W 1000W 1500w 1500W
Power Supply (V) 12 12 12 24
Max Lift Load 850 1000 1200 1250
Lift Working Load (kg) 80 165 165 190
Amps Work Load 90 135 150 75
Line Speed (m/min) 26 20 17 19
Max Line speed (m/min) 35 40 40 40
Net Weight Low Profile (kg) 21 23 24 24
Net Weight with Drum (kg) 23 24 25 25

With Drum

Construction Chrome Bronze Chrome Bronze Chrome Bronze Chrome Bronze
Motor Size 12v 800W 12v 1000W 12v 1500w 24v 1500W
Chain Size
1,434.86 €
Sale Price
1,291.37 €
1,641.72 €
Sale Price
1,477.55 €
1,971.31 €
Sale Price
1,774.18 €
1,971.31 €
Sale Price
1,774.18 €
6mm ISO 4565 DIN 766 02322201 02422201
8mm ISO 4565 DIN 766 02322211 02422211 02522212
10mm ISO 4565 02422221 02522105 02522222
10mm DIN 766 02422231 02522104 02522232
3/16 BBB 02422001
5/16 HT 02422021 02522021 02522022
3/8 DIN 02422031 02522031 02522032
3/8 HT 02422041 02522041 02522042

Low Profile

Construction Chromed
Bronze
Chromed
Bronze
Chromed
Bronze
Chromed
Bronze
Motor Size 12v 800W 12v 1000W 12v 1500w 24v 1500W
Chain Size
1,357.29 €
Sale Price
1,221.56 €
1,602.91 €
Sale Price
1,442.62 €
1,918.06 €
Sale Price
1,726.25 €
1,918.06 €
Sale Price
1,726.25 €
6mm ISO 4565 DIN 766 02321201 02421201
8mm ISO 4565 DIN 766 02321211 02421211 02521212
10mm ISO 4565 02421221 02521105 02521222
10mm DIN 766 02421231 2521104 02521232
3/16 BBB 02421001
5/16 HT 02421021 02521021 02521022
3/8 DIN 02421031 02521031 02521032
3/8 HT 02421041 02521041 02521042

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
