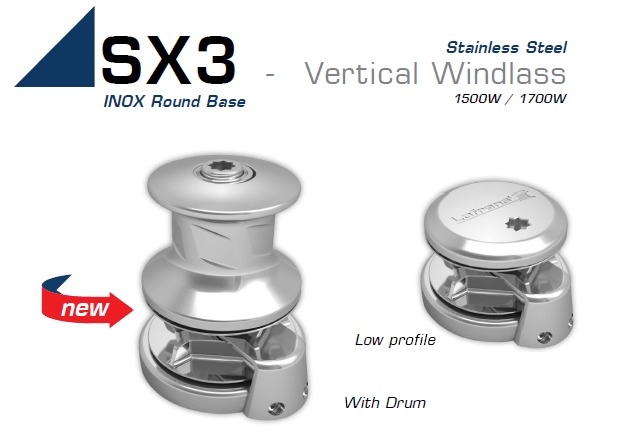

Lofrans SX3 Vertical Windlass

Lofrans sX3
Lofrans 3 year

Main Features

Compact round base design

Marine AISI 316L Stainless Steel construction

With drum or Low profile

Indepent Gypsy and drum operation

Manual chain release

Chain counter magnet pre-installed as standard

IP67 rated heavy duty electric motor

Anodised marine aluminium gearbox


Lofrans sX3 specifications

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Stainless Steel
Motor Size 1500W 1700w
Volts 12 24 12 24
Max instant pull (kg) 1200 1200 1600 1695
Working pull (kg) 165 165 200 215
Amps under load (A) 150 65 180 90
Line speed (m/min) 17 17 14 15
Max line speed (m/min) 40 40 32 32
Weight Low Profile (kg) 32 32 35 35
Weight With Drum (kg) 35 35 38 38

With Drum

Construction Stainless steel
Motor 12v 1500W 24v 1500W 12v 1700W 24v 1700W
Chain Size
2,800.53 €
Sale Price
2,520.48 €
2,932.99 €
Sale Price
2,639.69 €
2,723.42 €
Sale Price
2,451.08 €
2,723.42 €
Sale Price
2,451.08 €
8mm ISO 4532021
10mm DIN 4532031 4632031 4632032
10mm ISO 4532042
12mm ISO 4632072

Low Profile

Construction Stainless steel
Motor 12v 1500W 12v 1700W 24v 1700W
Chain Size
1,870.89 €
Sale Price
1,683.80 €
2,486.61 €
Sale Price
2,237.95 €
2,486.61 €
Sale Price
2,237.95 €
10mm ISO 4531041 4531041
12mm ISO 4631072

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
