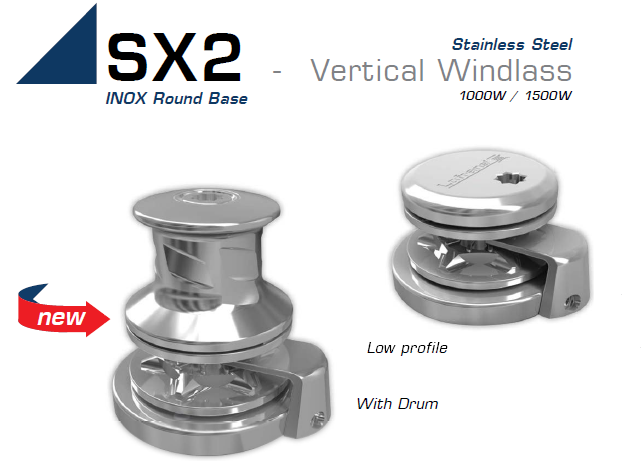

Lofrans SX2 Vertical Windlass

Main Features

Compact round base design

Marine AISI 316L Stainless Steel construction

With drum or Low profile

Indepent Gypsy and drum operation

Manual chain release

Chain counter magnet pre-installed as standard

IP67 rated heavy duty electric motor

Anodised marine aluminium gearbox

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Stainless steel

Construction	Stainless Steel
Motor Size	1000W		1500w
Power Supply (V)	12	24	12	24
Max Lift Load	1000	1060	1200	1270
Lift Working Load (kg)	150	160	165	175
Amps Work Load	135	70	150	75
Line Speed (m/min)	20	23	17	19
Max Line speed (m/min)	40	40	40	40
Net Weight Low Profile (kg)	19	23	24	24
Net Weight with Drum (kg)	20	24	25	25

With Drum

Construction	Stainless Steel
Motor Size	12v 1000W	24v 1500W
Chain Size	1,930.10 € Sale Price 1,737.09 €	2,106.64 € Sale Price 1,895.98 €
8mm ISO 4565 DIN 766	636283	636285
10mm DIN	636653

Low Profile

Construction	Stainless Steel
Motor Size	12v 1000W	24v 1500W
Chain Size	1,444.62 € Sale Price 1,300.16 €	1,728.80 € Sale Price 1,555.92 €
8mm ISO 4565 DIN 766	636282	636284

*Other options available: 10mmISO - 5/16HT - 3/8DIN - 3/8HT
