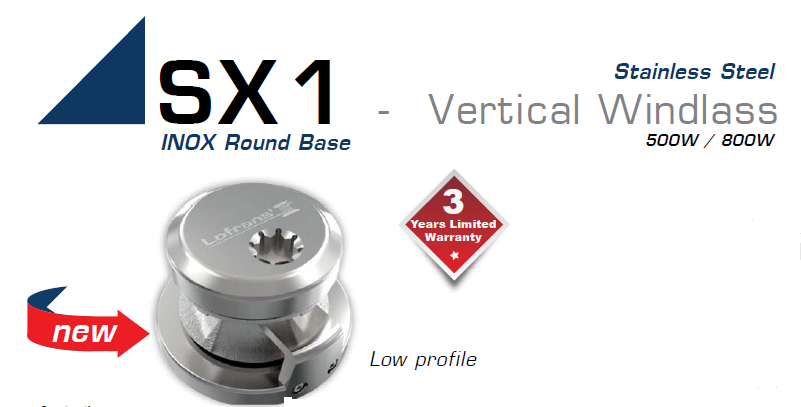

Lofrans SX1 Vertical Windlass

Lofrans SX1

Main Features

Compact round base design.

Marine AISI 316L Stainless Steel Base.

Manual chain release.

Chain counter pre-setting as standard.

Heavy duty rated IP67 electric motor.

Anodised marine aluminium gearbox.

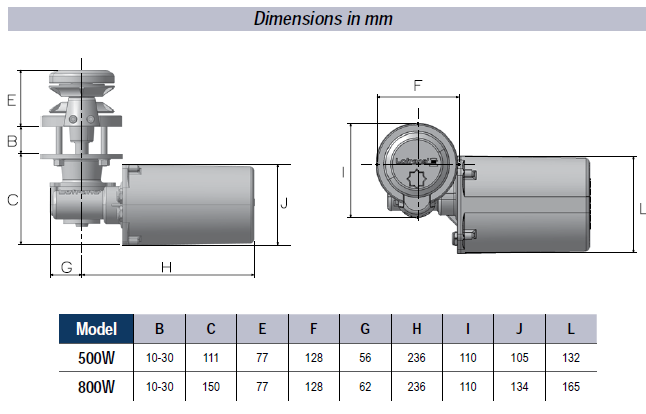

Lofrans SX1 specifications Lofrans base positions

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Stainless Steel
Motor Size 500W 800W
Power Supply
(V)
12 12
Maximum Linea Load (kg) 630 700
Lift Working Load (kg) 95 100
Amps Work Load (A) 75 80
Line Speed (m/min) 23 25
Max Line speed (m/min) 23 25
Net Weight Low Profile (kg) 11 13
Control Box Included Included

Low Profile

Construction Stainless Steel Stainless Steel
Motor Size 500W 800W
Chain Size
935.43 €
Sale Price
841.89 €
1,018.31 €
Sale Price
916.48 €
6mm 01131001 01131001
8mm 01331021

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
