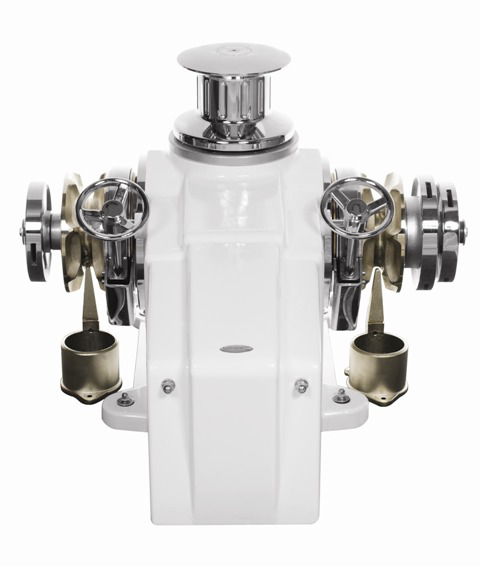

Lofrans Super Ercole Windlass

Main Features

Marine aluminium anodised body.

White polyester coating

Manual override.

Manual chain release.

Independent Gypsy and drum operation.

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	White Aluminium	White Aluminium	White Aluminium
Motor Size	3500W	5500W	Hydraulic 11cc
Volts	24	400
Amps work load	190
Max instant lift (kg)	5000	7000	7000
Working load (kg)	870	1670	1670
Line speed (m/min)	8	12	12
Max line speed (m/min)	15	12	12
Weight (kg)	200	235	180
Hydraulic Pressure (bar)			200
Hydraulic Flow (lt/min)			40

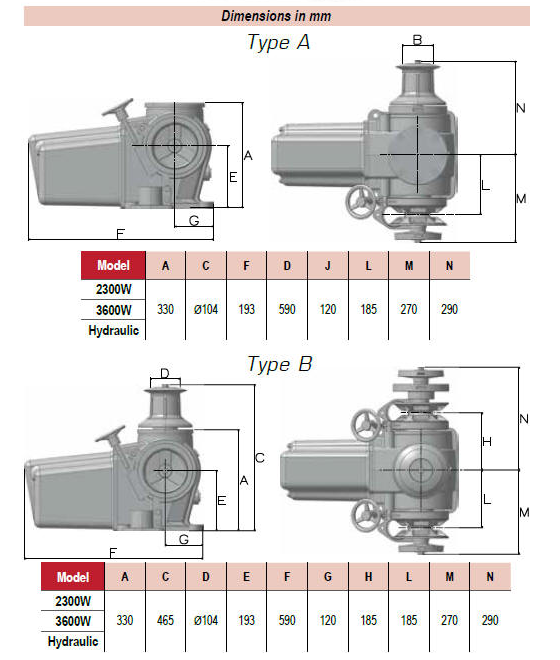

Type A	Gypsy Stb - Drum Port
Type B	Gypsy Stb - Gypsy Port - Drum Top
Type C	Gypsy Stb - Drum Port - Drum Top
Type D	Gypsy Stb - Drum Top
Type E	Gypsy Port - Drum Top
Type F	Drum Stb - Gypsy Port

Type A

Motor Size	3500W	5500W	Hydraulic 11cc
Type A price	22,643.68 € Sale Price 20,379.31 €	22,910.24 € Sale Price 20,619.22 €	20,246.06 € Sale Price 18,221.45 €
Type A 16mm	404957	602501	602488

Type B

Motor Size	3500W	5500W	Hydraulic 11cc
Type B price	25,307.64 € Sale Price 22,776.88 €	25,574.18 € Sale Price 23,016.76 €	22,643.68 € Sale Price 20,379.31 €
Type B 16mm	426414	602504	602491

Type C

Motor Size	3500W	5500W	Hydraulic 11cc
Type C price	25,356.16 € Sale Price 22,820.54 €	25,545.39 € Sale Price 22,990.85 €	22,707.01 € Sale Price 20,436.30 €
Type C 16mm	602498	600668	602494

Type D

Motor Size	3500W	5500W	Hydraulic 11cc
Type D price	21,325.10 € Sale Price 19,192.59 €
Type D 16mm	600671

Choice of Gipsy:

10mm 12mm 14mm 13mm 16mm 18mm 20mm

3/8 DIN, 3/8 HT, 1/2 HT

1/2" 9/16" 5/8" 11/16" 3/4" Stud Link

14, 16, 17.5, 19, 20 Stud link

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
