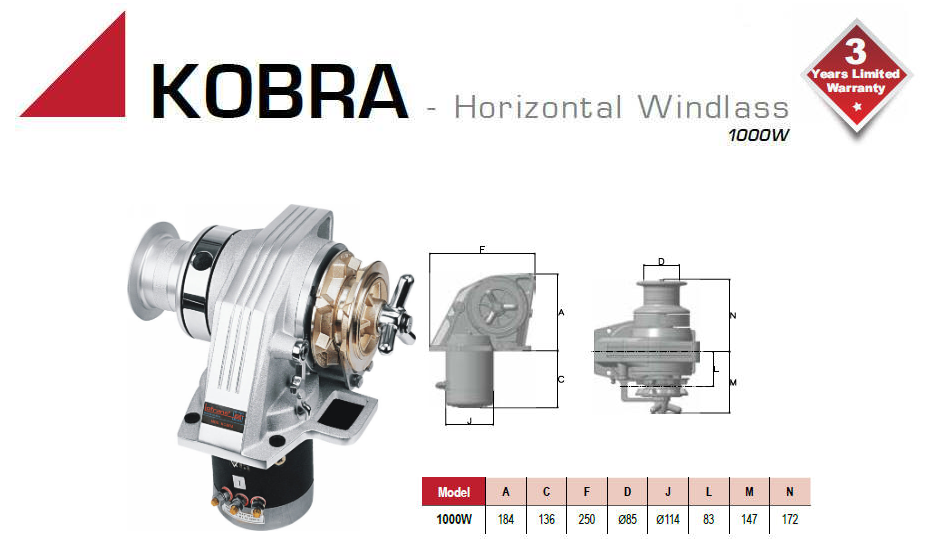

Lofrans Kobra Windlass

Lofrans Kobra

Main Features

Marine aluminium anodised body.

Rope chain management by the spring load arm.

Manual override.

Manual chain release.

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Aluminium Aluminium
Motor Size 1000W 1000w
Volts 12 24
Amps work load 150 80
Max instant lift (kg) 1250 1325
Working load (kg) 170 170
Line speed (m/min) 16 17
Max line speed (m/min) 32 33
Weight (kg) 21 21

Construction Aluminium Aluminium
Motor Size 1000W 1000w
Price
Chain Size
1,731.67 €
Sale Price
1,558.51 €
1,731.67 €
Sale Price
1,558.51 €
6mm ISO 4565 DIN 766 26413201 26413202
8mm ISO 4565 DIN 766 26413211 26413212
10mm ISO 4565 26413221 26413222
10mm DIN 766 26413231 26413232
1/4" HT 26413011 26413012
5/16" DIN 26413021 26413022
5/16" HT 26413131 26413132
3/8" DIN 26413031 26413032
3/8" HT 26413101 26413102
3/8 PC 26413091 26413092

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
