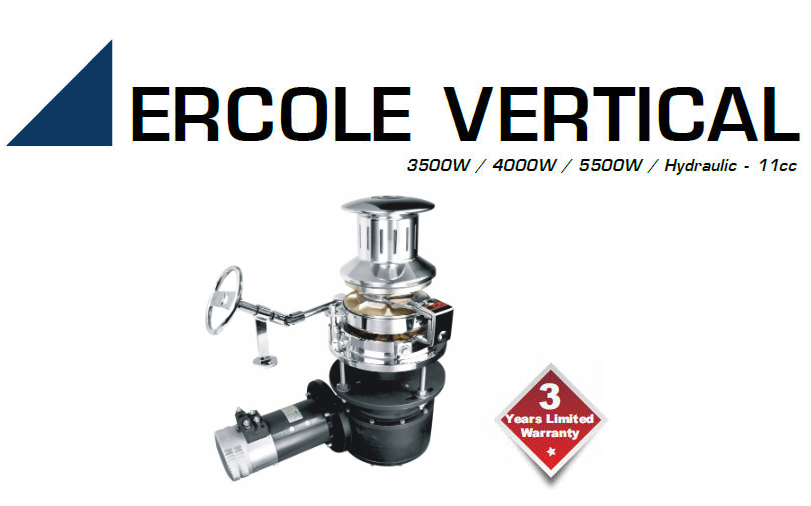

Lofrans Ercole Vertical Windlass

Luxury chrome bronze or aluminium base and drum.

Luxury stainless steel base and drum (Plus version).

With drum or without drum.

Indepent Gypsy and drum operation.

Rope and chain combination Gypsy.

Manual override.

Manual chain release.

Chain counter pre-setting as standard.

Heavy duty rated IP44 electric motor.

Anodised marine aluminium gearbox.

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel
Motor Size	3500W	4000W	5500W	7500W	Hydraulic - 11cc
Volts	24	230/400	230/400	400
Amps under load	120	9-14	9-14	20-25
Maximum Instant Lift (kg)	4500	5500	6500	7500	6500
Lifiting Working Load (kg)	1075	1310	1550	2000	1550
Line speed (m/min)	8	12	12	12	12
Max line speed (m/min)	15	12	12	12	12
Net Weight (kg)	180	180	200	225	165
Hydraulic Pressure (bar)					200
Hydraulic Flow (lt/min)					40

Construction	Inox - 316	Inox - 316	Inox - 316	Inox - 316	Inox - 316
Motor Size	3500 W	4000 W	5500 W	7500w	Hydraulic - 11cc
Prices	20,553.50 € Sale Price 18,498.15 €	21,716.85 € Sale Price 19,545.17 €	23,138.78 € Sale Price 20,824.90 €	23,138.80 € Sale Price 20,824.90 €	17,838.83 € Sale Price 16,054.95 €
Clockwise Rotation
14mm	600080	600082			602523
16mm ISO	600310	600367	600409		602525
17.5mm Studlink			30003	636078
Counter Clockwise Rotation
14mm	600081	600083			602524
16mm ISO	600308	600363	600408		602526
17.5mm Studlink			30004	636079
