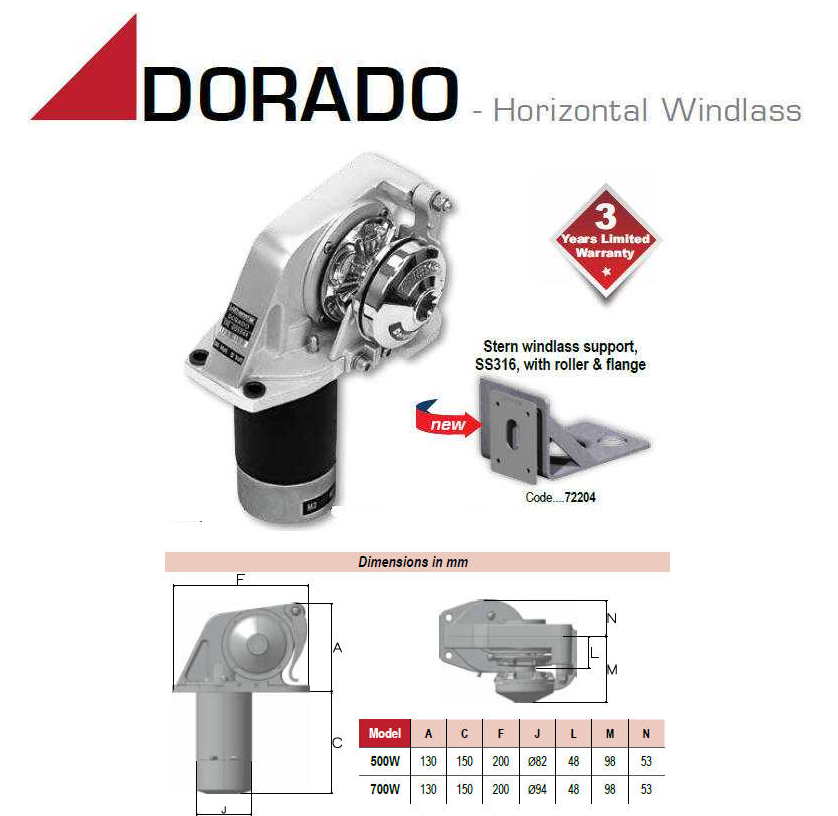

Lofrans Dorado Windlass

Lofrans Dorado

Main Features

Marine aluminium anodised body.

Rope chain management by the spring load arm.

Manual override.

Manual chain release.

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction Aluminium Aluminium
Motor Size 500W 800w
Volts 12 12
Amps work load 65 80
Max instant lift (kg) 600 650
Working load (kg) 70 80
Line speed (m/min) 18 20
Max line speed (m/min) 24 25
Weight (kg) 10 11


Construction Aluminium Aluminium
Motor 500W 800W
Chain and Rope Size
956.55 €
Sale Price
860.90 €
1,034.13 €
Sale Price
930.72 €
Lofrans Chain link 6mm ISO 4565
Lofrans Rope 12mm
11313201 11313201
Lofrans Chain link 8mm ISO 4565
Lofrans Rope 12mm
11113211 11313211
Lofrans Chain link 3/16" HT
Lofrans Rope 7/16"
11113001 11213001
Lofrans Chain link 1/4" HT
Lofrans Rope 7/16"
Lofrans Chain link 5/16" HT
Lofrans Rope 1/2"

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
