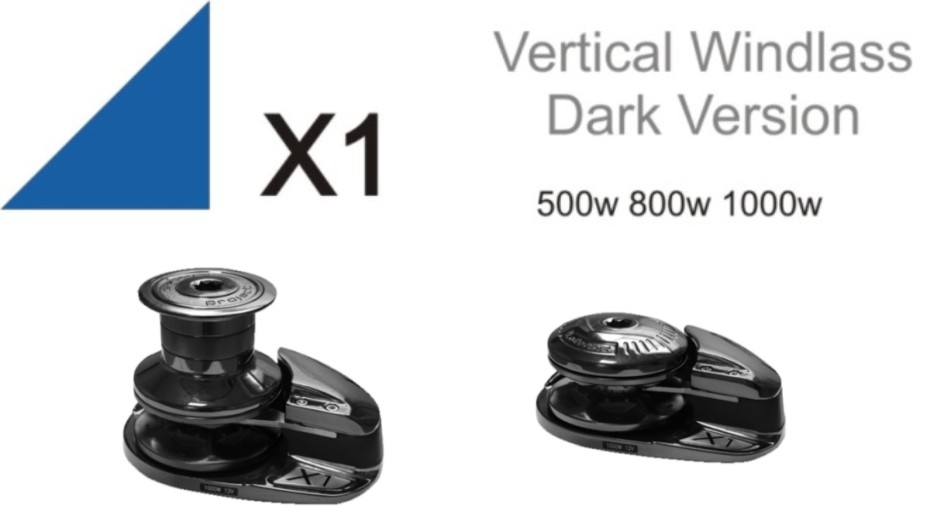

Lofrans Dark X1 Vertical Windlass

Main Features

Compact round base design.

Bronze Plated.

Manual chain release.

Chain counter pre-setting as standard.

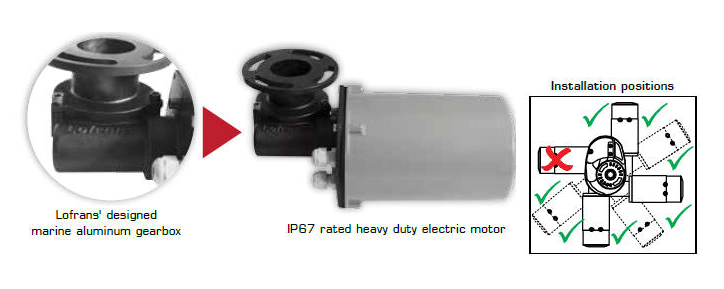

Heavy duty rated IP67 electric motor.

Anodised marine aluminium gearbox.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

Construction	Bronze
Motor Size	500W	800W	1000W
Power Supply (V)	12	12	12
Maximum Linea Load (kg)	630	700	900
Lift Working Load (kg)	95	100	125
Amps Work Load (A)	60	110	125
Line Speed (m/min)	23	25	18
Max Line speed (m/min)	26	28	30
Net Weight Low Profile (kg)	10	13	16
Net Weight with drum (kg)	11	14	17
Control Box	Included	Included	Included

Low Profile

Construction	Bronze Plated	Bronze Plated	Bronze Plated
Motor Size	500W	800W	1000W
Chain Size	1,125.89 € Sale Price 1,013.03 €	1,220.50 € Sale Price 1,098.45 €	1,400.27 € Sale Price 1,260.25 €
6mm chain or 10/12mm 3 strand rope	636206	636433
8mm chain or 12mm 3 strand rope	636700	636432	636701

With Drum

Construction	Bronze Plated
Motor Size	800W
Chain Size	1,305.65 € Sale Price 1,175.09 €
8mm chain or 12mm 3 strand rope	636702

*Other options available: 1/4"HT 5/16"HT
