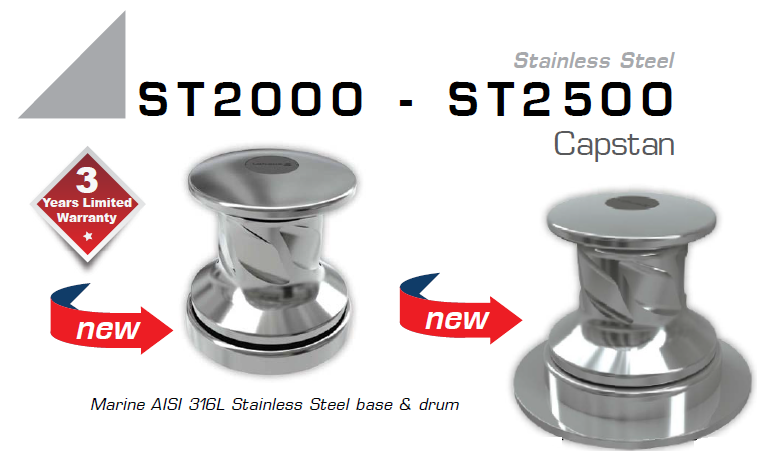

Lofrans ST2000 ST2500 Capstan

Main Features

316 Stainless steel base and drum.

Heavy duty rated IP66 electric motor.

Anodised marine aluminium gearbox.

Included in the price:

Complete Capstan.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.

CW - Clockwise       CCW - Counter Clockwise

Model	ST2000		ST2500
Motor Size	2300W		2200W	2700W	Hydraulic
TYPE	CW	CCW	CW	CW	CW
POWER	24	24	230-400	24	Hyd 9cc
Max instant lift (kg)	2000	2000	2200	2400	2500
Working load (kg)	545	545	595	650	680
Amps work load	180	180		210
Line speed (m/min)	15	15	15	15	15
Max line speed (m/min)	31	31	15	31	15
Weight Kg	52	52	52	53	40
Hyd Press bar	-	-	-	-	200
Hyd Flow l/min	-	-	-	-	32
Prices	3,924.15 € Sale Price 3,531.74 €	3,924.15 € Sale Price 3,531.74 €	4,187.34 € Sale Price 3,768.61 €	5,096.61 € Sale Price 4,586.95 €	4,570.20 € Sale Price 4,113.18 €
Code	636300	636301	636302	636303	636304
