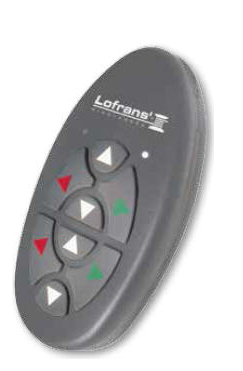

Hand remote

2 channels 433.92 Mhz.

12 - 24 volts.

Description

Lofrans radio remote control is designed to work with our range of windlasses.


The remote control can also be used to operate other onboard equipment such as thrusters, passerelles, cranes, etc.

Main Features

Supports up to 8 independently controlled channels.

Each receiver can switch 4 channels (12/24 V - 5 A).

Each transmitter can handle 2 receivers (8 channels).

Digital recognition avoids accidental activation of other system.

Zero power consumption when in standby mode (transmitter).

Easy to install and set up, simple to use.


Number of buttons 8 (transmitter)
Voltage 12 - 24 Vdc (Receiver)
Operative temperature -10:+60
IP protection rated 67 (transmitter)
Max contacts amperage (A) 2 (receiver)
Weight (gr) 310
Dimension (mm) 114x60x22(transmitter)
126x78x23(receiver)

Description Frequency Price
Transmitter and Receiver (EU) 868MHz
355.69 €
312976
Transmitter and Receiver (USA) 915MHz
355.69 €
312977
