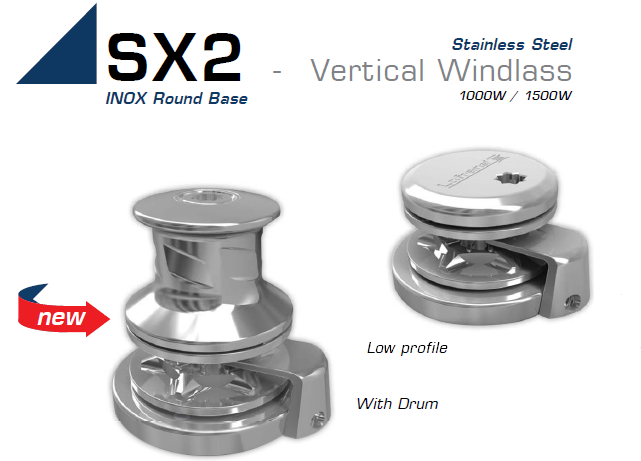

Compact round base design
Marine AISI 316L Stainless Steel construction
With drum or Low profile
Indepent Gypsy and drum operation
Manual chain release
Chain counter magnet pre-installed as standard
IP67 rated heavy duty electric motor
Anodised marine aluminium gearbox
Complete Windlass.
Chain gypsy.
Dual Direction Solenoid pack.
Winch handle.
CD/ Instruction Manual.
Construction | Stainless Steel | |||
---|---|---|---|---|
Motor | 1000W | 1500w | ||
Power Supply (V) | 12 | 24 | 12 | 24 |
Tira Máx Instantáneo (kg) | 1000 | 1060 | 1200 | 1270 |
Carga Util (kg) | 150 | 160 | 165 | 175 |
Amperios bajo carga (Media) (A) | 135 | 70 | 150 | 75 |
Velocidad de Subida (m/min) | 20 | 23 | 17 | 19 |
Max Velocidad de Subida (m/min) | 40 | 40 | 40 | 40 |
Peso sin Campana (kg) | 19 | 23 | 24 | 24 |
Peso con Campana (kg) | 20 | 24 | 25 | 25 |
Construction | Inoxidable | |
---|---|---|
Motor | 12v 1000W | 24v 1500W |
Cadena |
1,930.10 €
Sale Price 1,737.09 € |
2,106.64 €
Sale Price 1,895.98 € |
8mm ISO 4565 DIN 766 | 02432021 | 02532022 |
Construction | Inoxidable | |
---|---|---|
Motor | 12v 1000W | 24v 1500W |
Cadena |
1,444.62 €
Sale Price 1,300.16 € |
1,728.80 €
Sale Price 1,555.92 € |
8mm ISO 4565 DIN 766 | 02431021 | 02531022 |
*Configuración no estándar barbotens opcionales se suministran por separado. Por favor, consulte la tabla barbotens compatibles .
