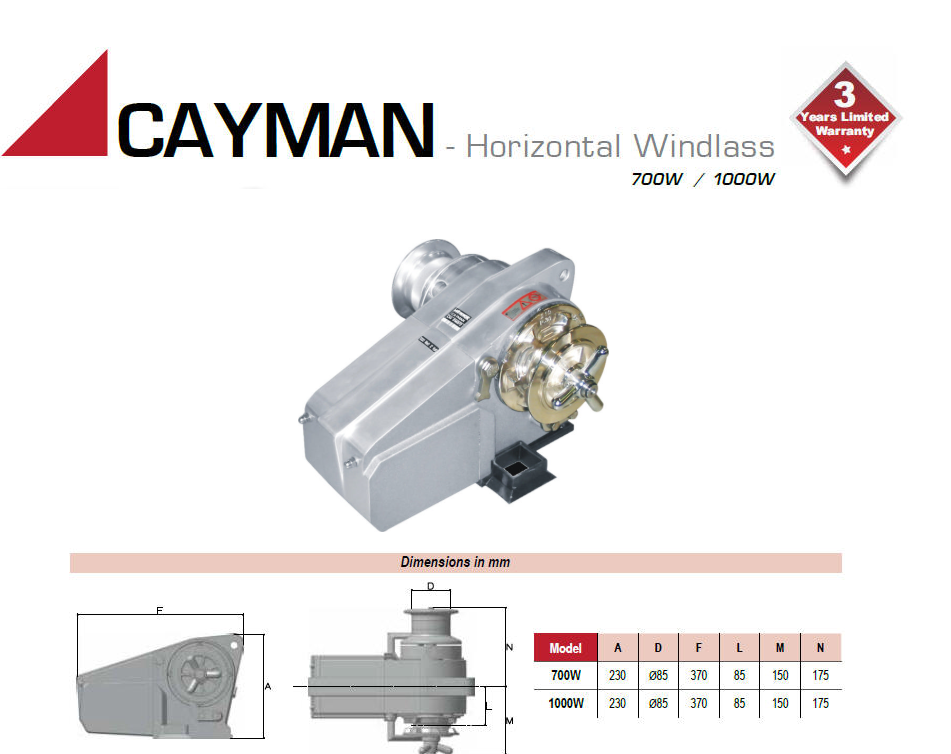

Lofrans Cayman Windlass

Lofrans Cayman

Main Features

Marine aluminium anodised body.

Rope chain management by the spring load arm.

Manual override.

Manual chain release.

Heavy duty rated IP66 electric.

Included in the price:

Complete Windlass.

Chain gypsy.

Dual Direction Solenoid pack.

Winch handle.

CD/ Instruction Manual.


Construction Aluminium Aluminium Aluminium
Motor Size 700W 1000W 1000W
Volts 12 12 24
Amps work load 110 150 80
Max instant lift (kg) 1000 1250 1325
Working load (kg) 100 170 170
Line speed (m/min) 21 16 17
Max line speed (m/min) 32 32 33
Weight (kg) 24 25 25

Construction Aluminium Aluminium Aluminium
Motor Size 700W 1000W 1000W
Price
Chain Size
1,861.43 €
Sale Price
1,675.29 €
1,939.05 €
Sale Price
1,745.15 €
1,939.05 €
Sale Price
1,745.15 €
6mm ISO 4565 DIN 766 12213201 12413201 12413202
8mm ISO 4565 DIN 766 12213211 12413211 12413212
10mm ISO 4565 12213221 12413221 12413222
10mm DIN 766 12213231 12413231 12413232
3/16" 12213001
1/4" HT 12213011
5/16" HT 12213021 12413021 12413022
3/8" DIN 12413031 12413032
3/8" HT 12413041 12413042
3/8" BBB 12413081 12413082
3/8" PC 12413091 12413092

*Non-standard configuration optional gypsies are supplied separately. Please refer to compatible gypsies table.
